Current Sensor (Clamp-on) 2.0 | Modbus

🫶 Installer-App Compatible

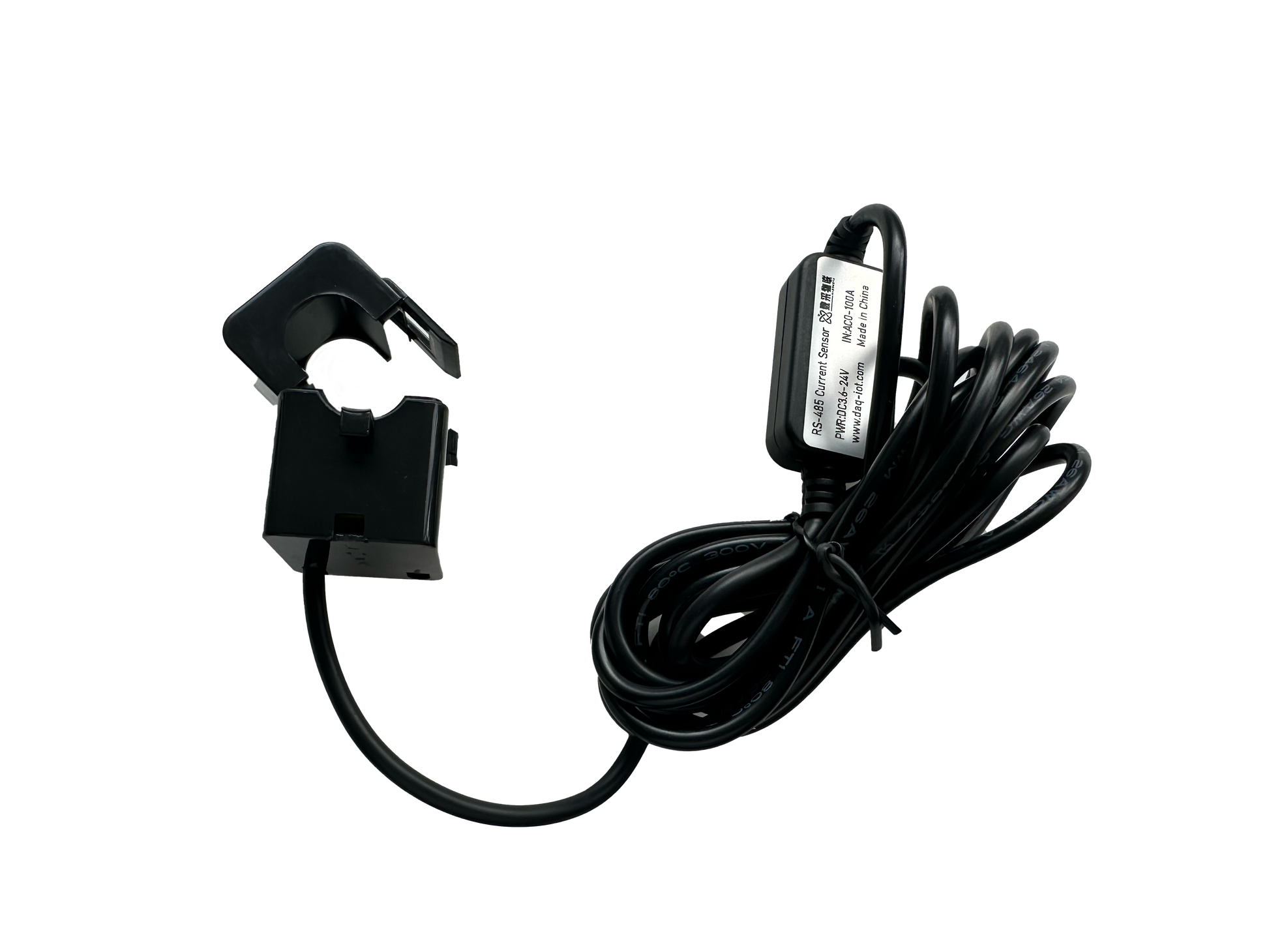

Split Core Current Transformer: rated for up to 100A

The DAQ-GP-CT485 current sensor is intended for use in breaker boxes or other locations where the load wires are isolated. This allows for the split core design to clamp around the conductor without disconnection.

Includes:

• (1) Clamp-on current sensor with M12 connector and 2m cable length

Compatible with:

• ☀️ Solar-Charging Monitoring Mote 2.0
• 🔋 Battery-Powered Monitoring Mote 2.0

Specifications:

• Current detection range:  AC 0.2A-100
• Working temperature: -20ºC to 70ºC
• Storage temperature: -20ºC to 80ºC
