meter.base Lite | 🛜 Ethernet/Wifi

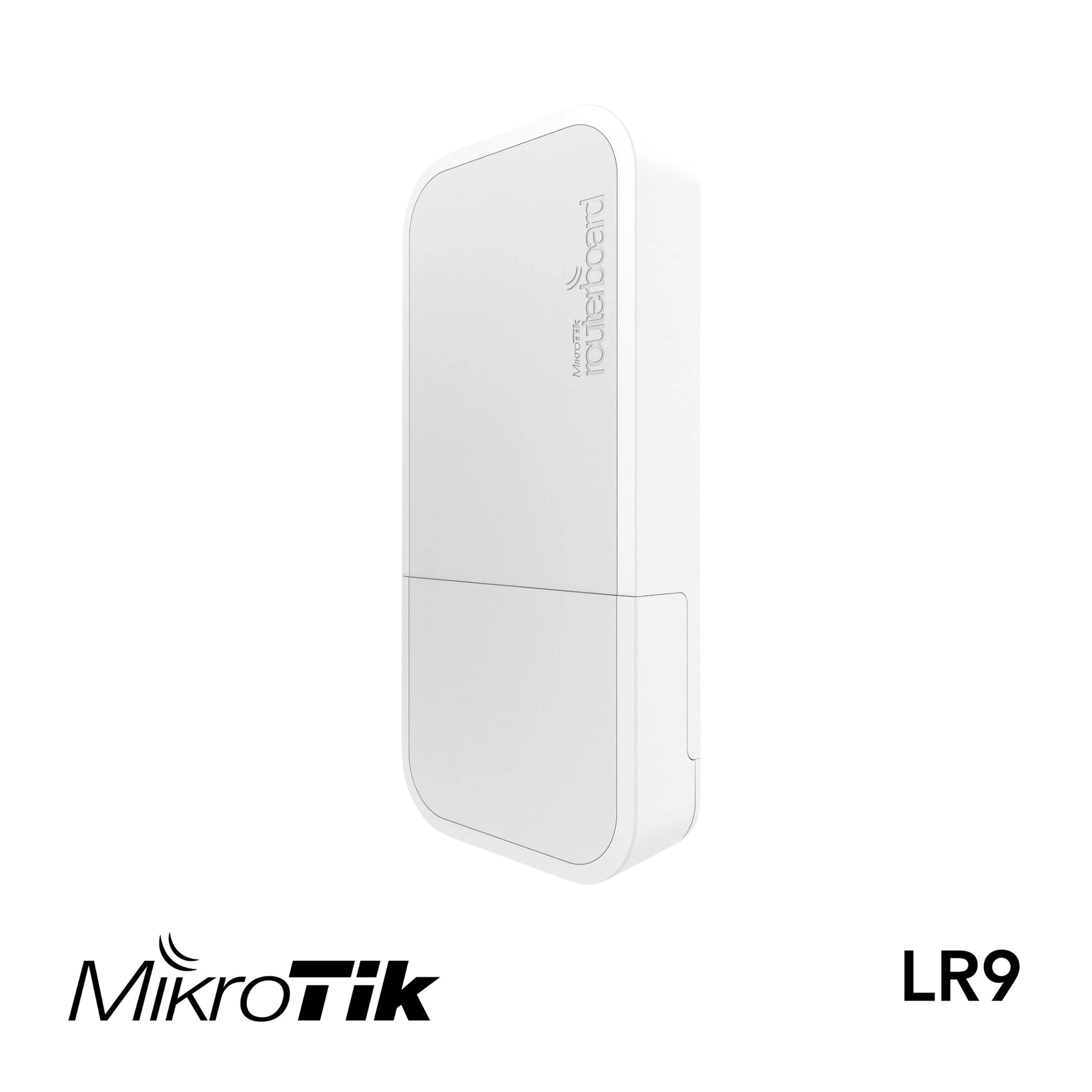

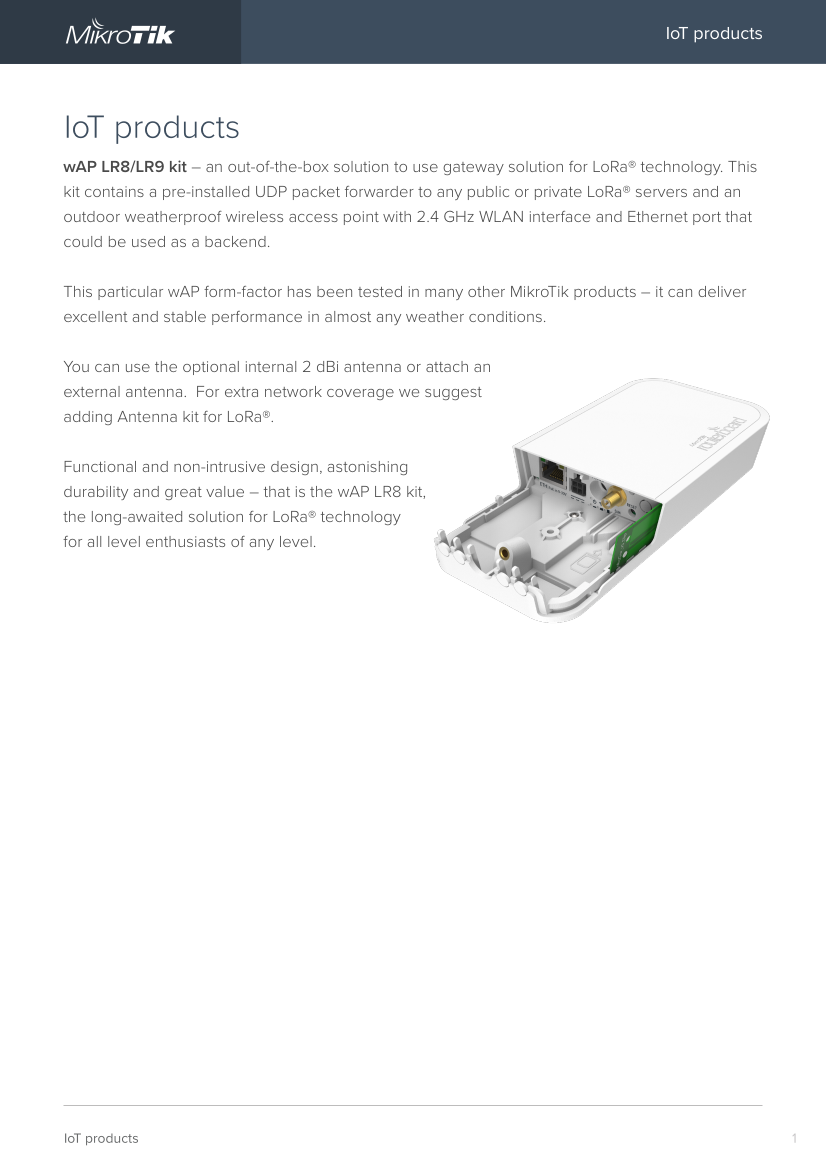

The Mikrotik LR9 is the default meter.base used in most applications. The meter.base connect to the cloud and communicates with nearby motes.

🫶 Installer-App Compatible

• Can be installed indoors or outdoors (IP54)
• Connects via Ethernet or WiFi (2G)

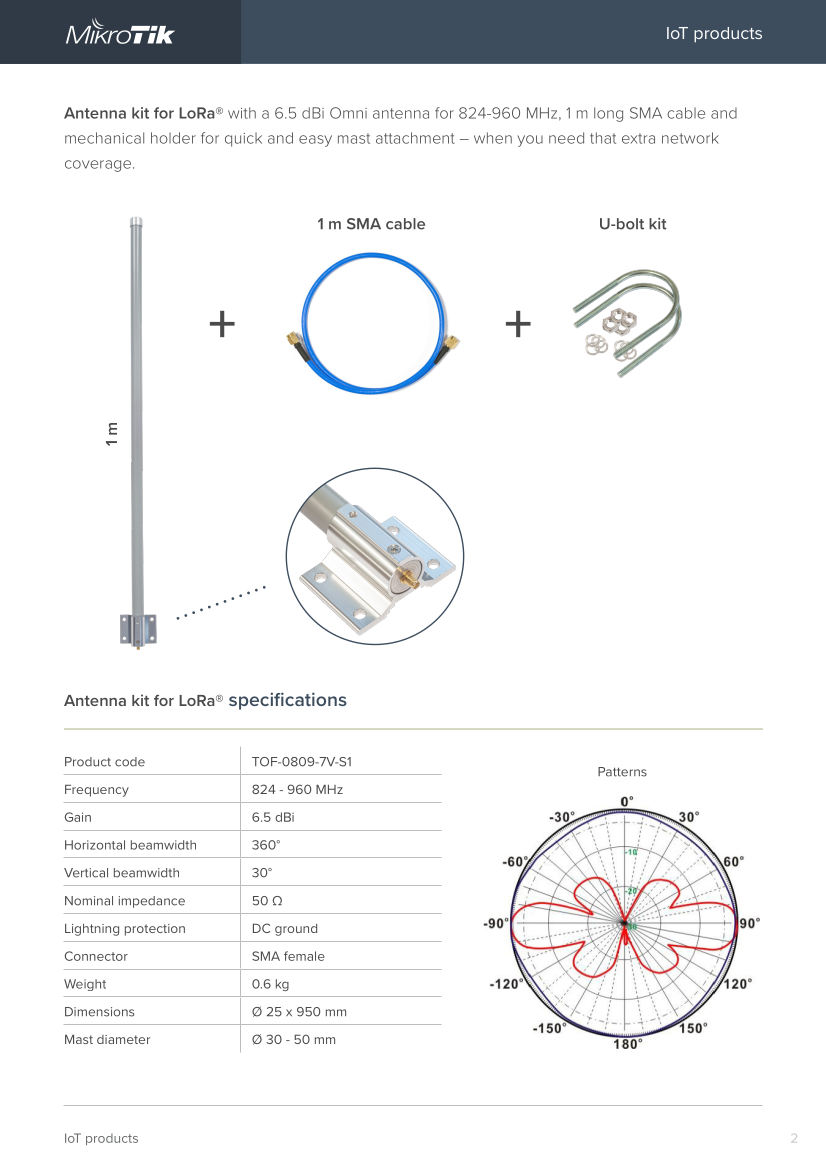

• Internal antenna (up to 500ft range installed indoors / up to 1mi range installed outdoors)

Package includes:

• meter.base Lite (Mikrotik LR9)
• Desktop mount
• Wall or Pole Mounting supplies
• POE adaptor
• 6ft ethernet cable
• Power Adapter (24V 0.8A)
• Ethernet to USB-C cable for WiFi configuration

Compatible with:

• All motes and sensors

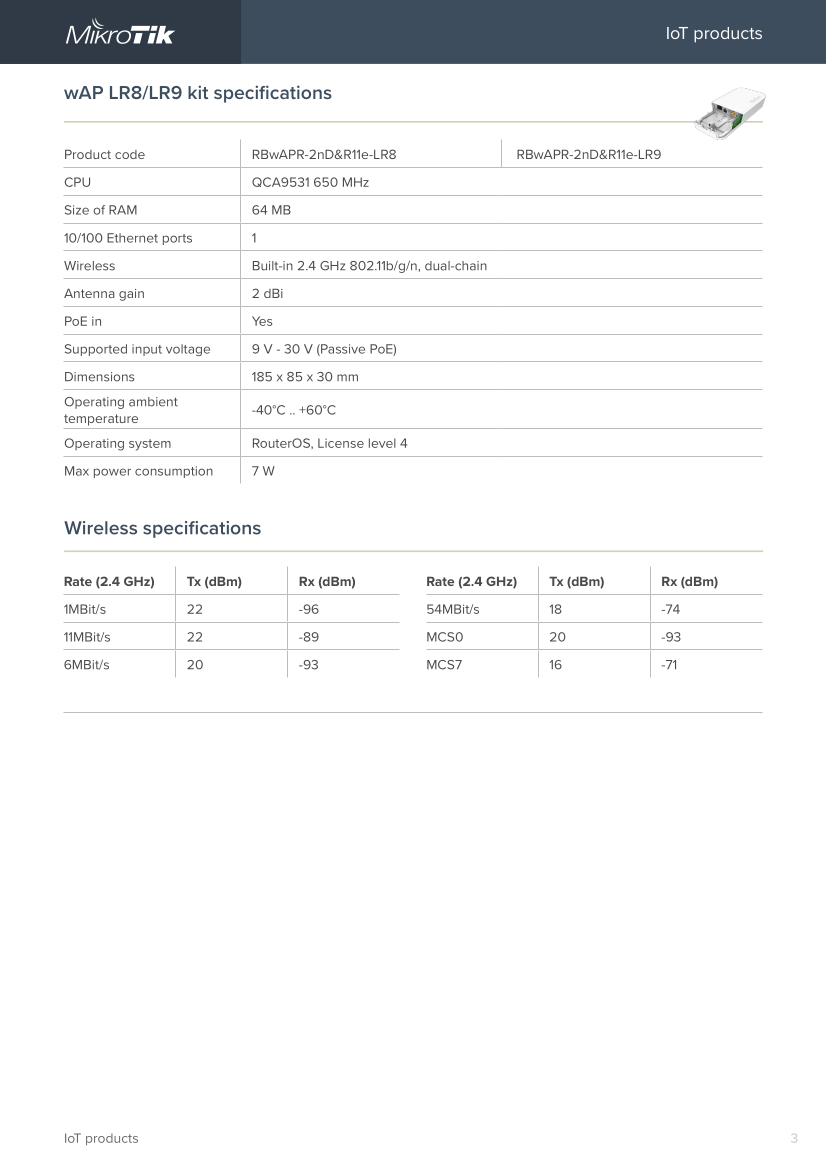

Specifications:

• Operating Frequency: US915
• Operating Temperature:  40°C to 60°C
• Dimensions: 185 x 85 x 30 mm
• PoE in input Voltage: 9-30 V
• Max Power Consumption: 7W
• Wireless 2.4 GHz generation: Wi-Fi 4

• Certification: FCC, IC, EAC
• IP54

Requirements:

• Local network: Ethernet, WiFi
• 120V AC power

Link to setup instructions

Pricing includes hardware and proprietary meter.me® configuration.
