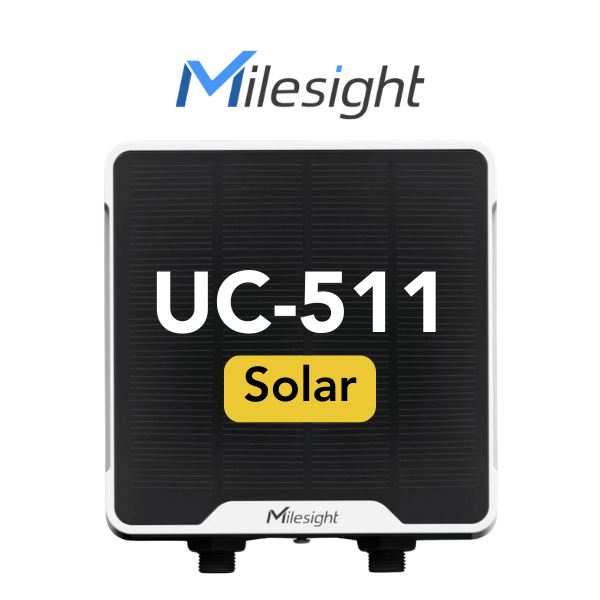

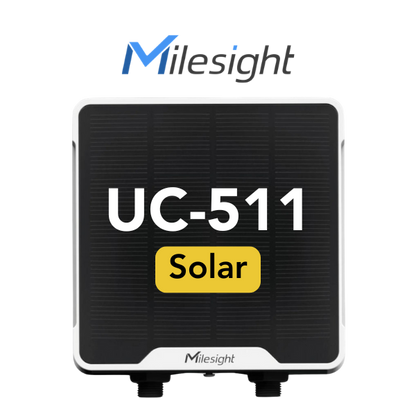

☀️ Solar-Charging Control Mote 1.0

Milesight UC-511 controller for pump/valve control. Control voltage is 12V.

Interface 1: connect 1 control component (pump or valve) along with GPIO inputs

Interface 2: optional GPIO input

Compatible with: Pump & Valve Control

Features:

• IP67 rated
• External Antenna version can accept external power 5-24VDC (requires additional power supply, not included)

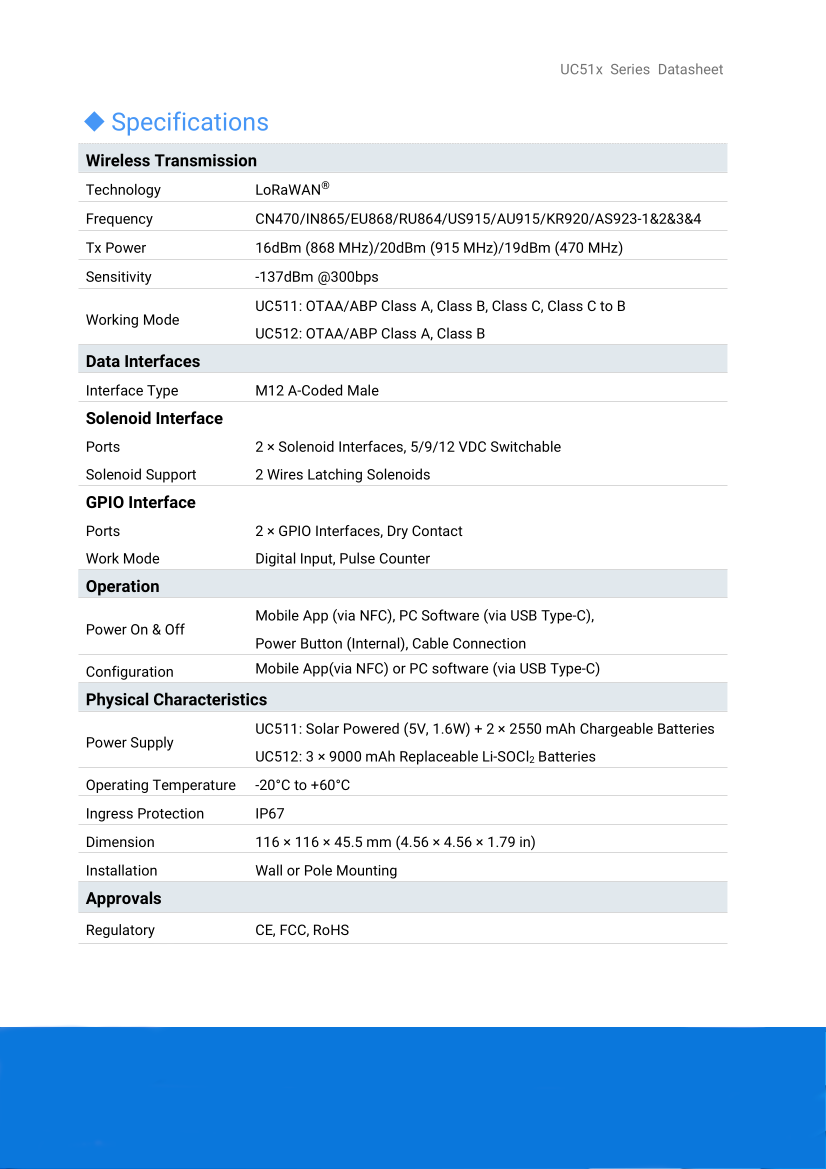

Specifications:

• Operating frequency: UC915
• 2 × 2550 mAh Chargeable Batteries
• Estimated 1-month battery life w/o charging (Class C)
• Dimensions: 120.1 ×120.1 ×55.4 mm (4.73×4.73×2.18 in)

Includes:

• (1) UC511 device
• (2) data cables
• (1) mounting bracket
• (1) wall mounting kit
• (2) hose clamps

• (2) waterproof junction boxes
• External Antenna model includes adjustable 45°-90° antenna
• External Antenna model also includes 2-pin DC power input cable (must be wired to power adaptor, not included)

Additional junction boxes available for sale separately

Pricing includes hardware and proprietary meter.me® firmware and configuration.
