Pressure Sensor 1.0 | Analog 4-20

Stainless Steel Pressure Transducer (Gauge) options:

• Up to 2.9 PSI (.2bar) - gauge
• Up to 14.5 PSI (1bar) - gauge
• Up to 145 PSI (10bar) - gauge

Includes:

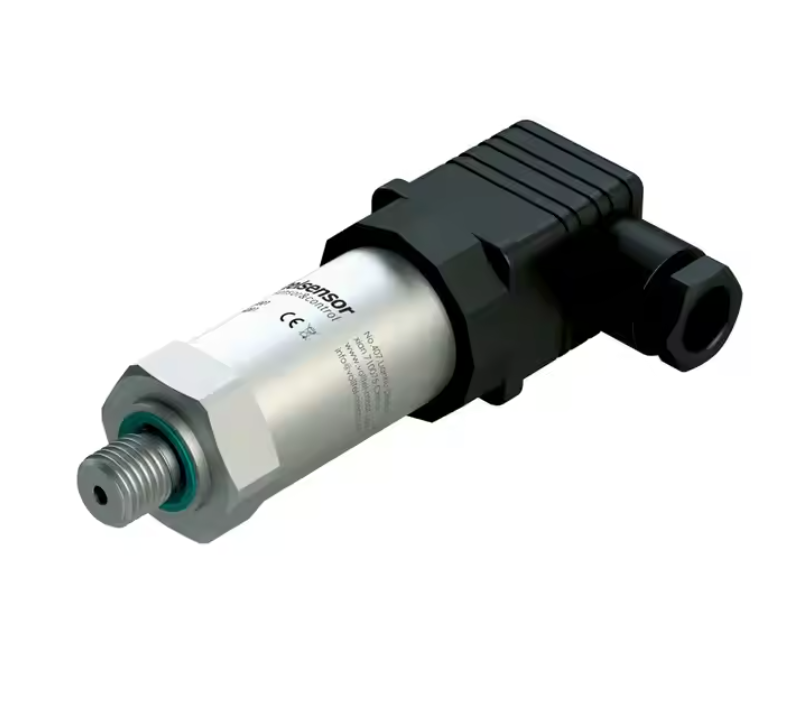

• (1) Volltel EPT1000 sensor with 1.5m [~5ft] cable attached

Compatible with:

• UC501, UC502 motes

Specifications:

• 27mm [~1.1 in] diameter
• Housing: 304 stainless steel
• Diaphragm: 316L stainless steel
• Cable sheath: PUR
• Oil Filling: Silicone oil
• Protection: IP65

Requirements:

• 1/4" NPT female port on the pipe where you want to monitor pressure
