Water Tank Sensor 2.0 | Modbus

🫶 Installer-App Compatible

Submersible barometric sensor options:

• Standard: for tanks up to 16ft tall (5m range with 6m [~19ft] cable)
• Tall: for tanks up to 32 ft tall (10m range with 12m [~39ft]cable

Includes:

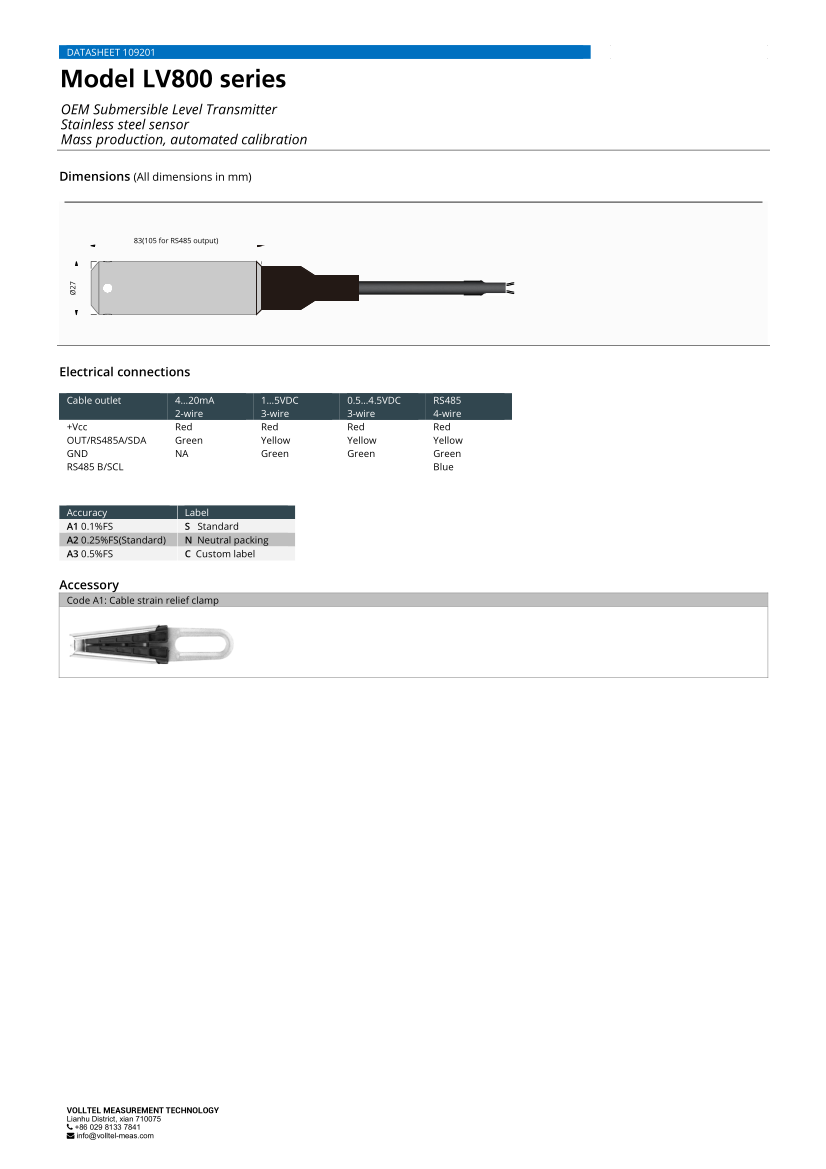

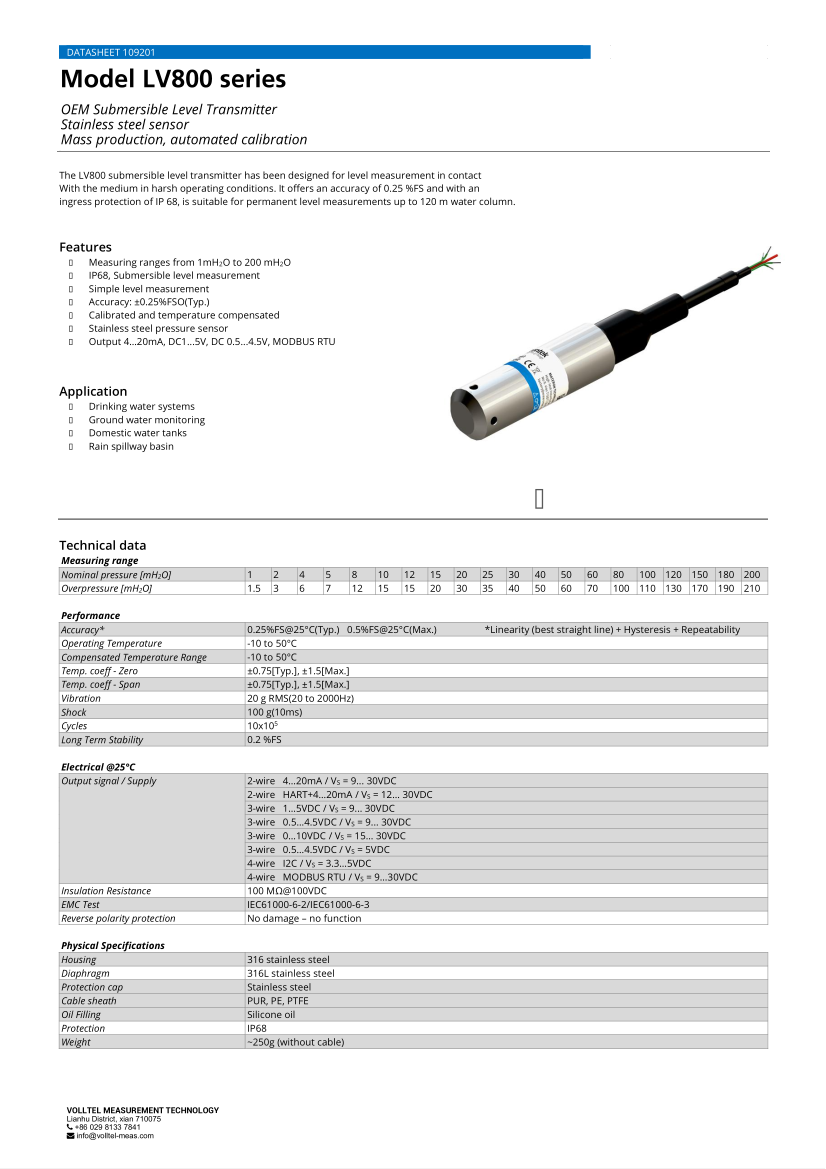

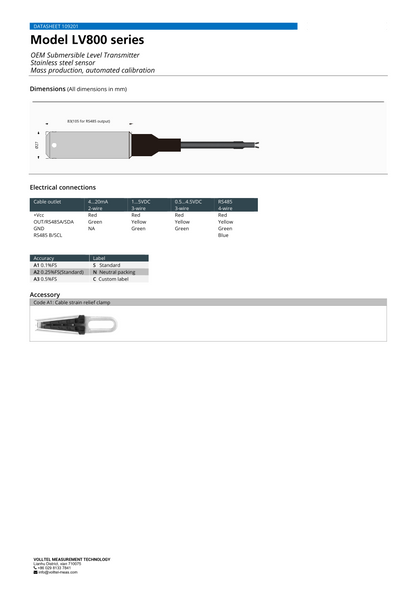

• (1) Volltel LV800 sensor with cable attached
• (1) 1" male threaded PVC adaptor plug
• (1) 1/2" cable gland

• terminal box with connector to mote

Compatible with:

• Monitor: meter.mote (solar)

Specifications:

• 26mm [~1 in] diameter
• Housing: 316 stainless steel
• Diaphragm: 316L stainless steel
• Protection cap: Stainless steel
• Cable sheath: PUR
• Oil Filling: Silicone oil
• Protection: IP68
