Well Sensor 2.0 | Modbus

🫶 Installer-App Compatible

Submersible barometric sensor options:

• 150ft - for wells up to 150ft deep
• 300ft - for wells up to 150-300ft deep
• 500ft - for wells up to 300-500ft deep
• 800ft - for wells 500-800ft deep

Sensors are custom-built and come with a 6 week lead time

Includes:

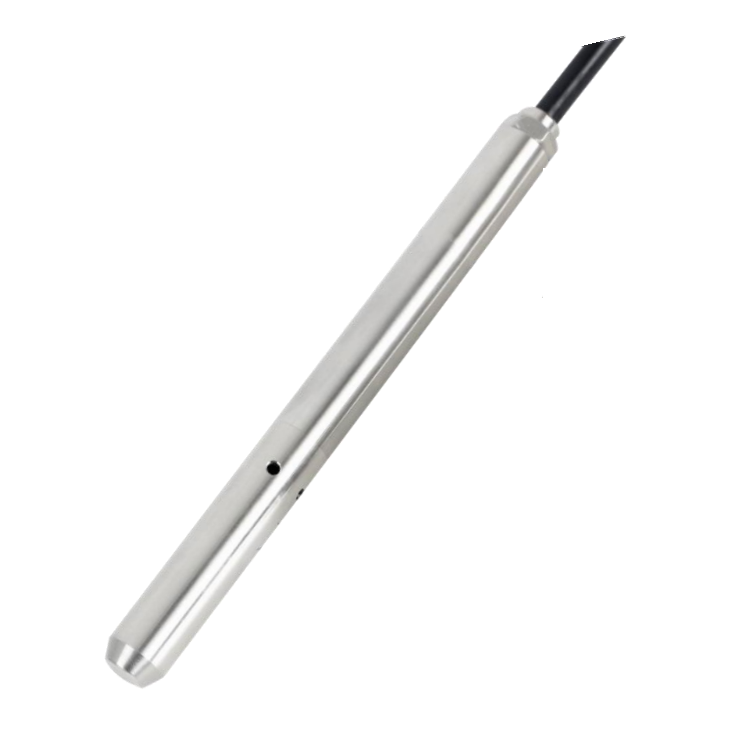

• (1) Holykell HPT607-E well sensor with cable attached (PUR cable for wells up to 300ft; PE with steel cable for wells 300+ ft)
• (1) cable strain relief clamp
• (1) 1/2" cable gland

• terminal box with connector to mote

Compatible with:

• Monitor: meter.mote (solar)

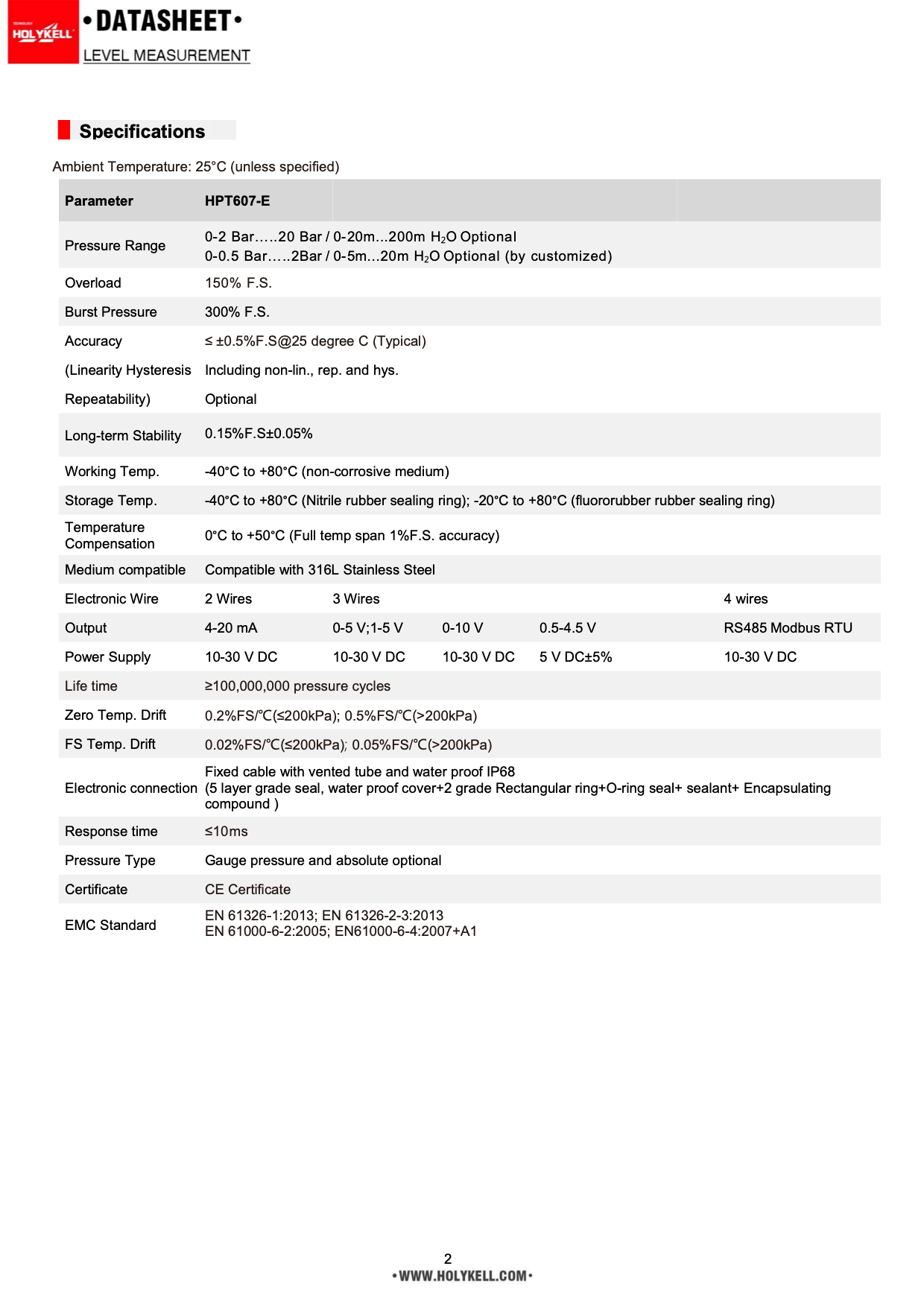

Specifications:

• 16mm [~0.63 in] diameter
• Housing: 316 stainless steel
• Diaphragm: 316L stainless steel
• Protection cap: Stainless steel
• Cable sheath: PUR or PE with steel (depending on depth)
• Pressure type: gauge
